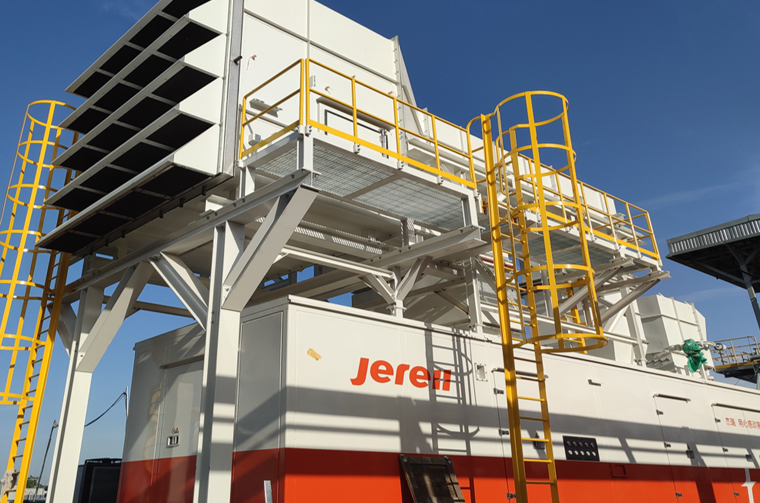

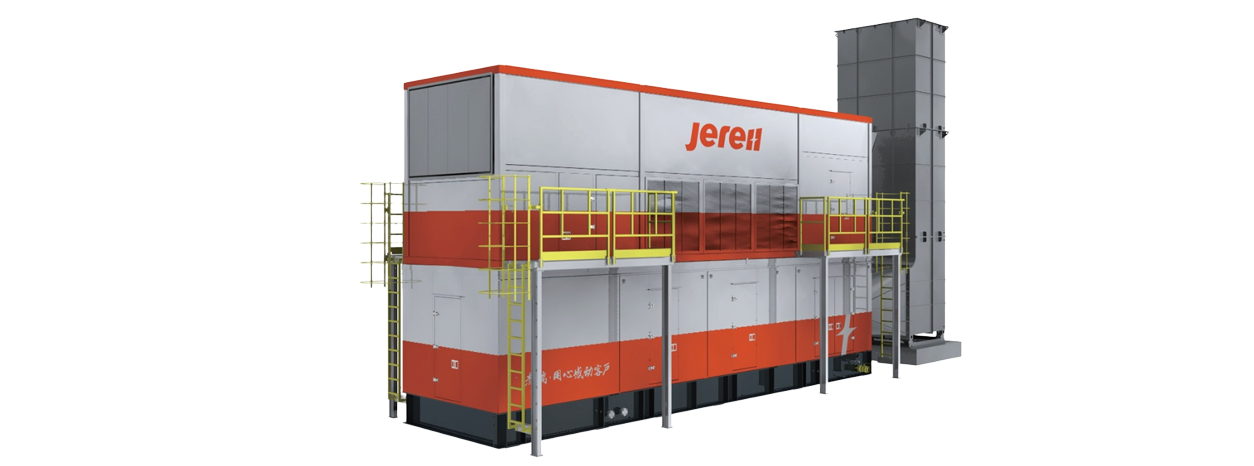

We offer stationary gas turbine generator sets from 3MW to 50MW for simple or combined cycle power plants. They can supply power to the grid, microgrids, industrial & mining facilities, and data centers, and can also be used for grid peak shaving.
Specializing in small to mid-sized gas turbines (3–50 MW), offering a wide range of Genset
Leveraging our experience in mobile generator sets, we excel in modular design, lightweight construction, intelligent monitoring, and grid-parallel management, enabling us to tailor solutions through technical innovation.
Our capabilities include simple cycle gas turbine generator sets, Combined cycle power plant development, equipment upgrade, and subsystem development—delivering comprehensive one-stop turnkey solutions to our clients.
| Model | JT6 | JT18 | JT25 | JT35 | |||
|---|---|---|---|---|---|---|---|
| Power | 4.2 MW | 5.5 MW | 5.8 MW | 17.2 MW | 24 MW | 33.8 MW | |
| Fuel Type | Natural Gas/Liquid Fuel/Dual-Fuel/Other Fuels | ||||||
| Efficiency | 29.70% | 32.10% | 33.10% | 37.50% | 37.50% | 39.50% | |
| Heat Rate | 12,130 kJ/kWh | 11,202 kJ/kWh | 10,889 kJ/kWh | 9,722 kJ/kWh | 9,104 kJ/kWh | 9,104 kJ/kWh | |
| Voltage | 13.8/11 kV | ||||||
| Frequency | 60/50 Hz | ||||||
| NOx Emission | ≤ 25 ppmv | 15/9 ppmv | ≤ 25 ppmv | ||||
| 15% O2(DLE) | 15% O2(DLE) | 15% O2(DLE) | |||||
Note:
1) The generated power is based on ISO condition, with gas fuel LHV 47.5 MJ/kg.
2) The International Organization for Standardization(ISO) has defined the following standard conditions:
· Ambient Temperature:15℃ . Barometric Pressure:101.3 kPa.
· Relative Humidity:60%. Inlet Exhaust Losses:None.
3) For detailed information, please consult Jereh's engineers.
