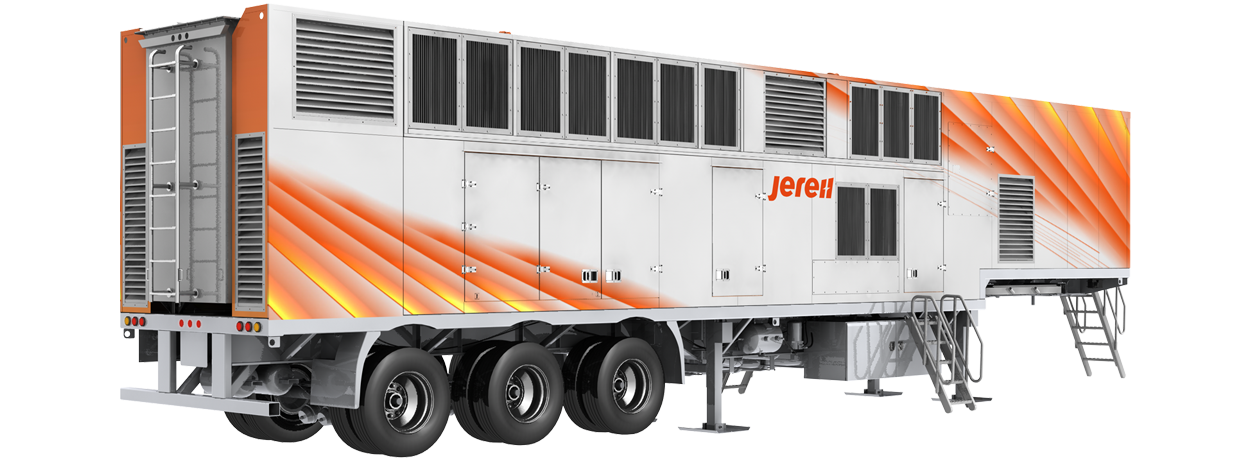

Power2Go JT6 is a 6MW mobile gas turbine gensets independently developed by Jereh, featuring a complete Siemens Energy SGT-A05 turbine system. Designed for rapid deployment, it can be installed within 2 hours. The unit offers high integration, adaptability, stability, and ease of use. Ideal for short-term, mid-scale power needs in applications such as oilfield fracturing, microgrids, grid peaking, urban emergency power, and data center.
Highly integrated design, with benefits of space-efficiency, easy to transport, fast deployment within 8 hours and high scalability to meet any power demands.
Suited for high-power load fluctuations with excellent load acceptance and rejection performance. Dynamic response characteristics far exceed reciprocating generator sets.
Noise levels as low as 85 dBA, suitable for data centers and emergency power with low-noise requirements.
Supports hybrid power and grid-parallel modes, compatible with various existing generator sets.
Excellent fast response to power fluctuations, ensuring stable operation under large load changes.
Can be combined with other mobile generators, distribution, substation, energy storage, and integrated control devices to meet sophisticated power needs.
| Model | JT6 | ||||
|---|---|---|---|---|---|
| Power | 4.2 MW | 5.5 MW | 5.8 MW | ||
| Fuel Type | Natural Gas/Liquid Fuel/Dual-Fuel/Other Fuels | ||||
| Efficiency | 29.70% | 32.10% | 33.10% | ||
| Heat Rate | 12,130 kJ/kWh | 11,202 kJ/kWh | 10,889 kJ/kWh | ||
| Voltage | 13.8/11 kV | ||||
| Frequency | 60/50 Hz | ||||
| NOx Emission | ≤ 25 ppmv 15%O2(DLE) | ||||
| Dimension | Truck | ~12,000×2,550×4,000 mm | ~13,600×2,550×4,000 mm | ||
| Trailer | ~13,700×2,550×4,000 mm | —— | |||
| Weight | Truck | ~32,000 kg | ~54,500 kg | ||
| Trailer | ~40,000 kg | —— | |||
Note:
1) The generated power is based on ISO condition, with gas fuel LHV 47.5 MJ/kg.
2) The International Organization for Standardization(ISO) has defined the following standard conditions:
· Ambient Temperature:15℃ . Barometric Pressure:101.3 kPa.
· Relative Humidity:60%. Inlet Exhaust Losses:None.
3) For detailed information, please consult Jereh's engineers.
