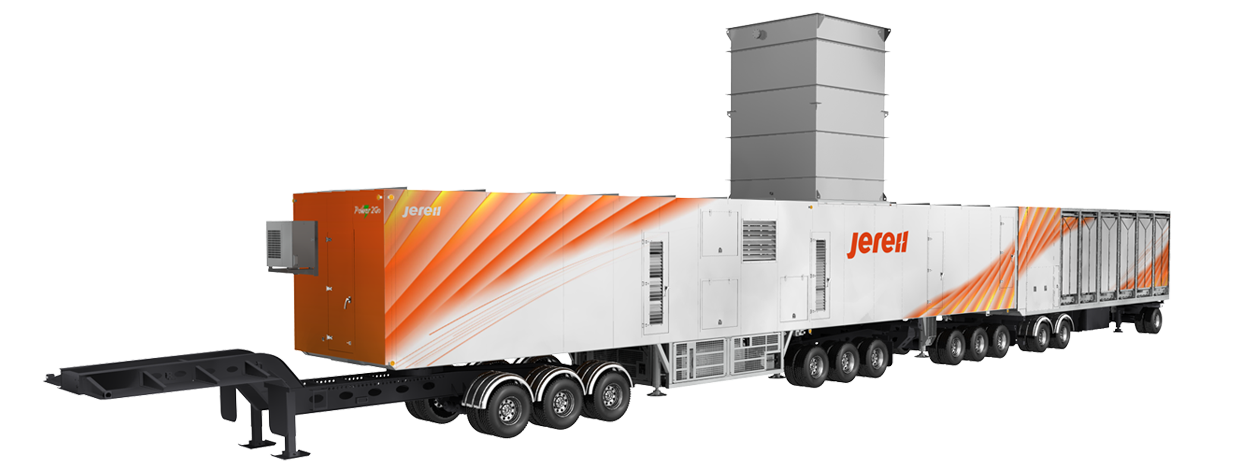

The Power2Go JT25 is a 25MW mobile gas turbine generator set independently developed by Jereh. It features a complete LM2500 BASE turbine system and delivers up to 25MW of output. Designed for rapid deployment and relocation, the unit can be fully installed and operational within 8 hours. It offers high integration, adaptability, reliability, and ease of use. The JT25 is ideal for large-scale temporary power needs such as oilfield fracturing, microgrids, grid peak shaving, municipal emergency power, as well as long-term power for peak shaving and data centers.

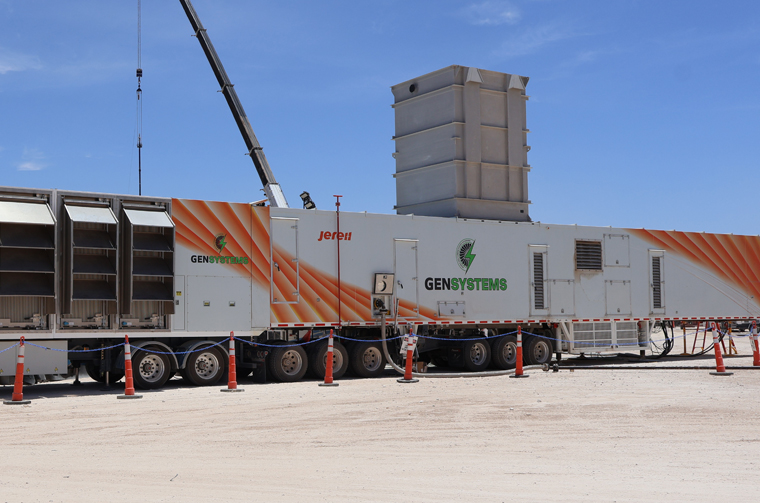

Highly integrated design, with benefits of space-efficiency, easy to transport, fast deployment within 8 hours and high scalability to meet any power demands.
Suited for high-power load fluctuations with excellent load acceptance and rejection performance. Dynamic response characteristics far exceed reciprocating generator sets.
Noise levels as low as 85 dBA, suitable for data centers and emergency power with low-noise requirements.
Supports hybrid power and grid-parallel modes, compatible with various existing generator sets.
Excellent fast response to power fluctuations, ensuring stable operation under large load changes.
Can be combined with other mobile generators, distribution, substation, energy storage, and integrated control devices to meet sophisticated power needs.
| Model | JT25 | |
|---|---|---|
| Power | 24 MW | |
| Fuel Type | Natural Gas/Liquid Fuel/Dual-Fuel/Other Fuels | |
| Efficiency | 37.50% | |
| Heat Rate | 9595 kJ/kWh | |
| Voltage | 13.8/11 kV | |
| Frequency | 60/50 Hz | |
| NOx Emission | ≤ 25 ppmv 15% O2(DLE) | |
| Dimension | Main Trailer | 21,057 × 2,998 × 4,293 mm |
| Inlet Trailer | 13,919 × 2,997 × 4,267 mm | |
| Exhaust Silencer | 2,769 × 2,997 × 4,216 mm | |
| Weight | Main Trailer | ~87,000 kg |
| Inlet Trailer | ~22,000 kg | |
| Exhaust Silencer | ~6,985 kg | |
Note:
1) The generated power is based on ISO condition, with gas fuel LHV 47.5 MJ/kg.
2) The International Organization for Standardization(ISO) has defined the following standard conditions:
· Ambient Temperature:15℃ . Barometric Pressure:101.3 kPa.
· Relative Humidity:60%. Inlet Exhaust Losses:None.
3) For detailed information, please consult Jereh's engineers.
